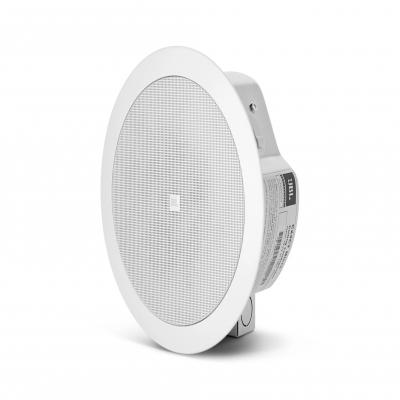

JBL Control 24C Micro

Speaker ចាប់លើពិដាន JBL Control 24C Micro

General:

• Frequency Range: 85 Hz - 25 kHz
• Power Capacity:
  • 30 Watts Continuous Program Power
  • 15 Watts Continuous Pink Noise (60W peak), 100 hrs
• Nominal Sensitivity: 86 dB SPL @ 1 m (3.3 ft) (100 Hz - 10 kHz average)
• Maximum SPL (1m): 98 dB (104 dB peak)
• Coverage Angle: 150° conical
• Nominal Impedance: 7.1 ohms

Components:

• Low Frequency Transducer: 115 mm (4.5 in) IMG (injection molded graphite) cone with butyl rubber surround, 24 mm (1 in) voice coil
• High Frequency Transducer: 12 mm (0.5 in) polycarbonate

Crossover:

• Crossover Frequency: 3.5 kHz

Physical:

• Outside Dimensions (H x Dia): 106 x 195 mm (4.2 x 7.7 in)
• Depth (front of ceiling tile to back of backcan): 105 mm (4.1 in)
• Cutout Size: 167 mm (6.6 in) diameter (cardboard cutout template included)
• Net Weight (each): 1.6 kg (3.6 lb)
• Shipping Weight (pair): 3.6 kg (7.9 lb)

Design:

• Backcan: Formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O
• Termination: Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of backcan
• Color: White (paintable trim and baffle)

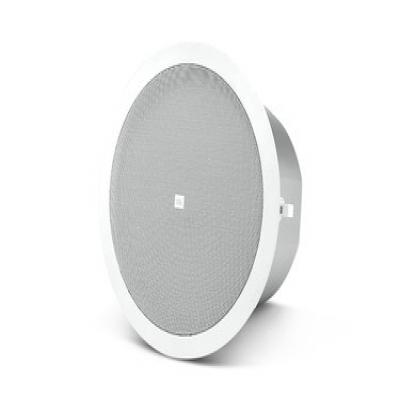

JBL Control 24C

Speaker ចាប់ពិដាន JBL Control 24C

The JBL Control 24C is a compact in-ceiling loudspeaker designed for background and foreground music, as well as music-plus-paging systems. Here are its key specifications:

General Specifications:

• Frequency Range (-10 dB): 80 Hz - 20 kHz
• Power Capacity:
  • 80 Watts Continuous Program Power
  • 40 Watts Continuous Pink Noise
• Nominal Sensitivity: 86 dB SPL @ 1 m (3.3 ft)
• Nominal Coverage Angle: 130° conical coverage
• Directivity Factor (Q): 2.4 averaged 500 Hz to 4 kHz
• Directivity Index (DI): 3.8 averaged 500 Hz to 4 kHz
• Maximum SPL (1m): 102 dB (low-impedance), 108 dB peak
• Nominal Impedance: 16 ohms (Minimum Z 16.1 Ω @ 320 Hz)

Transducers:

• Low Frequency Driver: 100 mm (4.0 in) woofer with a polypropylene-coated cone and pure butyl rubber surround, aluminum voice coil former.
• High Frequency Driver: 19 mm (0.75 in) titanium-coated tweeter, diffraction-loaded.

Physical:

• Outside Dimensions (H x Dia): 200 x 195 mm (7.9 x 7.7 in)
• Depth (from front of ceiling tile to back of backcan): 184 mm (7.2 in)
• Cutout Size: 168 mm (6.6 in) diameter (cardboard cutout template included)
• Net Weight (each): 2.7 kg (6 lb)
• Shipping Weight (pair): 6.4 kg (15 lb)
• Backcan: Formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire-rated UL94V-0

Connectors:

• Removable locking connector with screw-down terminals.
• 2 input terminals and 2 loop-thru output terminals.
• Maximum wire size: 12 AWG (2.5 mm²)

JBL Arena 6IC

Speaker ដាក់ពិដាន

កម្លាំង 80W

អូប៉ាល័រ 1.6តឹក

ប្រេកង់ 38Hz - 20kHz

JBL Arena 8IC

Speaker ដាក់ពិដាន

កម្លាំង 100W

អូប៉ាល័រ 2តឹក

ប្រេកង់ 30Hz - 20kHz

JBL B8IC

JBL B8IC

JBL C8IC

JBL C8IC

JBL Control 18C/T

JBL Control 18C/T

JBL Control 8128

JBL Control 8128

JBL Control 8124

JBL Control 8124

កម្លាំង 6W

REVEL C383

REVEL C383 8"

JBL Control 24CT Micro

Speaker សម្រាប់ដាប់លើពិដាន ហាងបាយ ហាងកាហ្វេ ផ្សារទំនើប ...

កម្លាំង 9W

អូប៉ាល័រ 4.5 inch

កម្រិតប្រេកង់ 85Hz - 25kHz
